Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

Name: Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump
Brand: Kobelco
Price: 1 USD

China Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump factory

Brand Name : Kobelco

Model Number : SK235 SK235SR

Certifiion : ISO9001

Place of Origin : China

MOQ : 1 Sets

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500-Sets/month

Delivery Time : 3-5 days

Packaging Details : Wooden Case Packing

Product name : SK235 SK235SR Hydraulic Main Pump

Part number : YN10v00009f1

Video outgoing-inspection : Provided

Warranty : 6 Months

Packing : Wooden box

Product class : Excavator Hydraulic Pump

Quality : Good quality

Place Of Origin : Guangzhou

Delivery time : 3-5 Working Days

Weight : 135KG

Contact Now

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

Product Descriptio

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

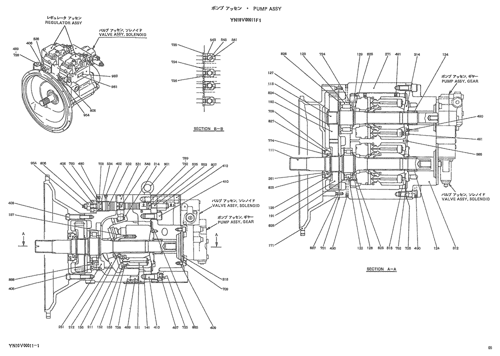

Pos.	Part No	Qty	Parts name	Comments
. .	YN10V00011F1	[1]	PUMP ASSY
111	YN10V00011S111	[1]	SHAFT	KOB
113	YN10V00011S113	[1]	SHAFT	KOB
122	YN10V00011S122	[1]	BEARING	KOB ROLLER
123	YN10V00011S123	[1]	BEARING	KOB ROLLER
124	YN10V00011S124	[2]	NEEDLE BEARING	KOB NEEDLE
126	YN10V00011S126	[2]	SPACER	KOB
127	2441U723S127	[1]	SPACER	KOB
128	YN10V00011S128	[2]	SPACER	KOB
129	2437U534S127	[2]	SPACER	KOB
141	NSS	[2]	NOT SOLD SEPARAT	CON BLOCK, CYLINDER
151	NSS	[18]	NOT SOLD SEPARAT	CON PISTON
152	NSS	[18]	NOT SOLD SEPARAT	CON SHOE
153	2437U213S153	[2]	PLATE	KOB Superseded by part number: LC10V00010S153
156	YN10V00005S156	[2]	BUSHING	KOB
157	2437U213S157	[18]	SPRING	KOB
171	YN10V00011S171	[1]	CASE
191	YN10V00011S191	[1]	SHAFT, PLANETARY CAR	KOB GEAR, DRIVEN
192	YN10V00011S192	[1]	SHAFT, PLANETARY CAR	KOB GEAR,DRIVEN
211	2441U242S211	[2]	PLATE	KOB SHOE
212	NSS	[2]	NOT SOLD SEPARAT	CON PLATE
214	NSS	[2]	NOT SOLD SEPARAT	CON BUSHING
251	YN10V00011S251	[2]	SUPPORT	KOB
261	YN10V00011S261	[1]	COVER	KOB
271	YN10V00011S271	[1]	CASE
312	YN10V00011S312	[1]	COVER	KOB
313	NSS	[1]	NOT SOLD SEPARAT	CON PLATE,VALVE
314	NSS	[1]	NOT SOLD SEPARAT	CON PLATE,VALVE
316	YN10V00011S316	[1]	COVER	KOB
406	ZS23C08020	[16]	SCREW,Hex Socket Head, M8 x 20mm	KOB
408	ZS23C12065	[10]	SCREW,Hex Socket Head, M12 x 65mm	KOB
409	ZS23C10016	[2]	SCREW,Hex Socket Head, M10 x 16mm	KOB Superseded by part number: ZS28C10016
410	ZS23C16040	[12]	CAPSCREW,Hex Socket Head, M16 x 40mm	KOB
412	2441U825S401	[1]	SCREW	KOB CAP
467	YW30V00001S157	[2]	PLUG	KOB
469	YN30V00001S154	[2]	PLUG	KOB
490	2441U722S490	[14]	PLUG	KOB 1/16" NPTF
491	2436U1165S152	[9]	PLUG	KOB
492	YN10V00011S492	[2]	RESTRICTOR
531	NSS	[2]	NOT SOLD SEPARAT	CON PIN
532	YN10V00011S532	[2]	KIT	KOB PISTON
534	YN10V00011S534	[2]	STOP	KOB
535	2437U213S535	[2]	STOP	KOB
536	YN10V00011S536	[2]	COVER	KOB
541	YX10V01001S541	[4]	SEAT	KOB
543	YX10V01001S543	[4]	STOP	KOB Superseded by part number: YF10V01001R100
545	2436R284S416	[4]	BALL	KOB
548	NSS	[2]	NOT SOLD SEPARAT	CON PIN,FEEDBACK
703	ZD12G02500	[2]	O-RING,24.40mm ID x 30.60mm OD x 3.10mm	KOB
709	ZD12G08500	[2]	O-RING,84.40mm ID x 90.60mm OD x 3.10mm	KOB
724	ZD12P00800	[3]	O-RING,1.9mm Thk x 7.8mm ID, 90 Duro	KOB
725	ZD12P01100	[2]	O-RING	KOB ID 10.8mm x OD 13.2mm
726	ZD12P01000	[4]	O-RING	KOB ID 09.80 ± 0.17 x OD 13mm
728	ZD12P02400	[2]	O-RING	KOB ID 23.70 ± 0.24 x OD 30mm
732	ZD12P01800	[2]	O-RING	KOB ID 17.8mm x OD 20.2mm
735	ZD12P12500	[4]	O-RING	KOB
751	YN10V00011S751	[1]	PACKING	KOB
752	YN10V00011S752	[1]	PACKING	KOB
774	2441U474S774	[1]	OIL SEAL	KOB
789	ZD85P01800	[2]	RING	KOB Back-Up -- ID 18 x OD 22 x Th 1.25mm
793	ZD85G02500	[2]	BACK-UP RING	KOB Back-Up -- ID 25 x OD 30 x Th 1.25mm
806	ZN12C16010	[2]	NUT	KOB
807	YN10V00011S807	[2]	NUT	KOB
823	ZR16X05500	[2]	RING	KOB RETAINING
824	ZR16X04000	[1]	RING	KOB Retaining -- ID 37 x OD 40 x Th 1.8mm
825	ZR16X05000	[2]	RING	KOB Retaining -- ID 50 x OD 64 x Th 2.0mm
826	ZR16X04500	[2]	RING	KOB Retaining -- ID 45 x OD 58 x Th 1.8mm
827	ZR26X08500	[1]	RING	KOB RETAINING
828	ZR26X10000	[2]	RING	KOB RETAINING
885	2441U723S885	[2]	PIN	KOB
886	ZP26D06014	[2]	PIN	KOB Roll -- OD 06 x 14mm Long
887	ZP26D08020	[2]	PIN	KOB Roll -- OD 08 x 20mm Long
888	YN10V00003S888	[2]	PIN	KOB
901	ZS91C01000	[2]	BOLT	KOB Eye -- M10x1.50x18mm
953	YN10V00003S953	[2]	SET SCREW	KOB
954	2437U188S954	[2]	SCREW	KOB
981	2437U407S981	[1]	LABEL	KOB NAME PLATE
983	2437U407S983	[2]	RIVET	KOB PIN
. .	YN10V00003S011	[2]	PISTON ASSY	KOB REPAR KIT CONSISTS OF REF 151x9,152x9
. .	YN10V00011R100	[2]	PIVOT	KOB REPAR KIT CONSISTS OF REF 212x1,214x1
. .	YN10V00011R200	[2]	PIN	KOB REPAR KIT CONSISTS OF REF 531x1,548x1
. .	2437U213S13	[1]	REPAIR KIT	KOB REPAR KIT CONSISTS OF REF 141x1,313x1
. .	2437U213S14	[1]	REPAIR KIT	KOB REPAR KIT CONSISTS OF REF 141 x1,314x1

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

Model	Hydraulic Pump
PC27MR-2	708-1S-00262/708-1S-00261/708-1S-00271/708-1S-00270
PC35MR-3	708-3S-00720
PC130-7	708-1L-00650
PC200-7	708-2L-00300
PC220-7	708-2L-00112
PC200-8	708-2L-00490/708-2L-00501/708-2L-00500
PC220-8	708-2L-00790/708-2L-00600
PC300-7/PC350-7/PC360-7	708-2G-00024/708-2G-00023/708-2G-00022
PC300-8/PC350-8	708-2G-00700
PC400-7	708-2H-00460/708-2H-00032/708-2H-00031/708-2H-00030
PC450-7	708-2H-00450/708-2H-00027/708-2H-00026/708-2H-00022
PC400-8/PC450-8	708-2H-00027/708-2H-00026

Product Paramenters

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

Maintenance

1. Regularly replace hydraulic oil: Hydraulic oil is an important part of the hydraulic system. It is very important to regularly replace and maintain the cleanness and proper viscosity of the hydraulic oil. Regularly check and replace hydraulic oil according to the excavator manufacturer's recommendations, ensuring you are using the correct specifiion and brand.

2. Regularly check the quality of the oil: Regularly check the quality of the hydraulic oil, including checking for moisture, impurities and contaminants. Use appropriate oil filters and oil analyzers to ensure the quality of your hydraulic oil is up to standard.

3. Check the seals of the hydraulic pump: The seals of the hydraulic pump (such as O-rings, sealing rings, etc.) may be worn or damaged during operation, causing hydraulic leakage. Regularly inspect and replace hydraulic pump seals to ensure good sealing performance.

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

About Xinfeng Machinery (XF) parts:

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

Advantages

Warehouse Display

Packaging and Delivery

Excavators Parts YN10v00009f1 K3v112dp Sk235sr Kawasaki Hydraulic Main Pump

FAQ
1. How to quickly and accurately buy products what lneeded?
A: Provide the original parts number to us to check.

2. How long have you been in the excavator
A: We are engaged in excavator parts since 1998

3. lfI don't know the part number,what shouldI do?
A: Please send us size and pictures of old products.

4. What is the warranty of the products?
A: The warranty is 6/12 Months based on the specific product.

5. How long is your delivery time?
A: The normal delivery time is 3-5 days for stock sproductsafter getting payment. lf not in stock, we will inform you thetime requlred.

6. Which shipping term you can supply?

A: By sea,air or by express ( DHL,Fedex,TNT,UPSEMS)

7. What is your MOQ?
A: Small order and sample order are acceptable

8. Do you have any After-Sales service?
A: Yes!Our
