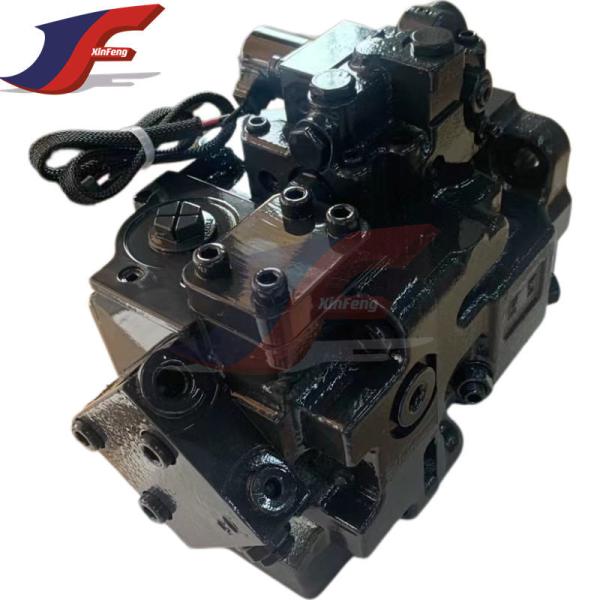

D65-16 D65-17 D65-18 Bulldozer Fan Pump Assembly 708-1s-00460 7081s00460 Pump
Product Descriptio
| Pos. | Part No | Qty | Parts name | Comments |
| | 708-1S-00460 | [1] | Pump Assembly Komatsu | 0.000 kg. |
| | | | ["SN: 80970-UP"] |$0. | |
| | 708-1S-01460 | [1] | Pump Subassembly Komatsu China | |
| | | | ["SN: 80970-UP", "SCC: C2"] |$1. | |
| 1 | 708-1S-12320 | [1] | Shaft Komatsu China | |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 2 | 708-1S-12260 | [1] | Bearing Komatsu | 0.12 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 3 | 706-73-40890 | [1] | Bearing Komatsu | 0.26 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["7088E12141"] | |
| 4 | 708-7T-05020 | [1] | Spacer Kit Komatsu | 0.01 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 5 | 708-1S-12280 | [1] | Ring, Wear Komatsu | 0.001 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 6 | 708-1S-12330 | [1] | Retainer Komatsu | 0.01 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 7 | 708-1S-12340 | [1] | Case Komatsu | 0.18 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 8 | 708-21-12970 | [1] | Seal, Oil Komatsu | 0.046 kg. |
| | | | ["SN: 80001-UP"] | |
| 9 | 708-1S-12350 | [1] | O-ring Komatsu | 0.003 kg. |
| | | | ["SN: 80001-UP"] | |
| 10 | 04065-06220 | [1] | Ring, Snap Komatsu | 0.013 kg. |
| | | | ["SN: 80001-UP"] | |
| 11 | 708-1S-13130 | [1] | Block, Cylinder Komatsu | 1.53 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["R7081S13130"] | |
| 12 | 708-1S-13460 | [1] | Plate, Valve Komatsu | 0.2 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 13 | 708-3S-13160 | [2] | Washer Komatsu China | |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 14 | 708-3S-13430 | [1] | Spring Komatsu | 0.07 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 15 | 04065-03515 | [1] | Ring, Snap Komatsu | 0.003 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 16 | 708-1S-13370 | [1] | Guide, Retainer Komatsu | 0.045 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["7083S13370", "R7081S13370"] | |
| 17 | 708-1S-13380 | [3] | Pin Komatsu | 0.06 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 18 | 708-1S-13360 | [1] | Retainer, Shoe Komatsu | 0.18 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["R7081S13360"] | |
| 19 | 708-1S-13320 | [7] | Piston Subassembly Komatsu | 0.09 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["R7081S13320"] | |
| 20 | 708-3S-14240 | [1] | Plug Komatsu China | |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 21 | 708-3S-14261 | [1] | Plug Komatsu China | |
| | | | ["SN: 80001-UP", "SCC: C2"] | |
| 22 | 07002-61223 | [2] | O-ring Komatsu | 0.001 kg. |
| | | | ["SN: 80970-UP", "SCC: C2"] analogs:["7082L23940"] | |
| 22 | 07002-11223 | [2] | O-ring Komatsu China | 0.001 kg. |
| | | | ["SN: 80001-80969", "SCC: C2"] analogs:["0700201223"] | |
| 23 | 708-3S-14290 | [1] | Piston Subassembly Komatsu | 0.087 kg. |
| | | | ["SN: 80001-UP", "SCC: C2"] analogs:["7081S14230", "7083S14250"] | |
| 24 | 708-1S-14241 | [1] | Spring Komatsu | 0.01 kg. |
Maintainance
The fan pump of a Komatsu bulldozer is an important component that requires regular maintenance to ensure its normal operation and extended service life. Here are some basic steps to maintain the fan pump of a Komatsu bulldozer:
Cleaning the fan pump: It is very important to clean the fan pump regularly because dust, mud and other impurities may clog the air inlet and outlet of the fan pump. Use compressed air or a water flusher to remove dirt and impurities accumulated on the fan pump.
Check the drive belt: Check the tightness and wear of the drive belt. If the drive belt is loose or worn, it should be replaced in time.
Lubrie the bearings: The bearings of the fan pump need to be lubried regularly to reduce friction and wear. Use appropriate lubriing oil or grease to lubrie the bearings.
Check the cooling system: Make sure the cooling system of the fan pump is working properly. Check the water level and quality of the coolant, ensure sufficient coolant supply, and clean or replace the filter.
Check the safety device: Make sure the safety device of the fan pump is working properly, such as the overheat protection device and the pressure switch. If a fault or damage is found, it should be repaired or replaced in time.
Regular maintenance: Perform regular maintenance according to the maintenance plan of the Komatsu bulldozer. According to the frequency of use and working conditions, develop a maintenance plan, including changing filters, checking seals and fasteners, etc.
Please note that the above are general maintenance recommendations, and the specific maintenance steps may vary depending on the model of Komatsu bulldozer. It is strongly recommended to refer to the user manual of the Komatsu bulldozer or consult a professional technician for detailed maintenance guidelines for your specific model.
